Using OGN

Philip G. Lee

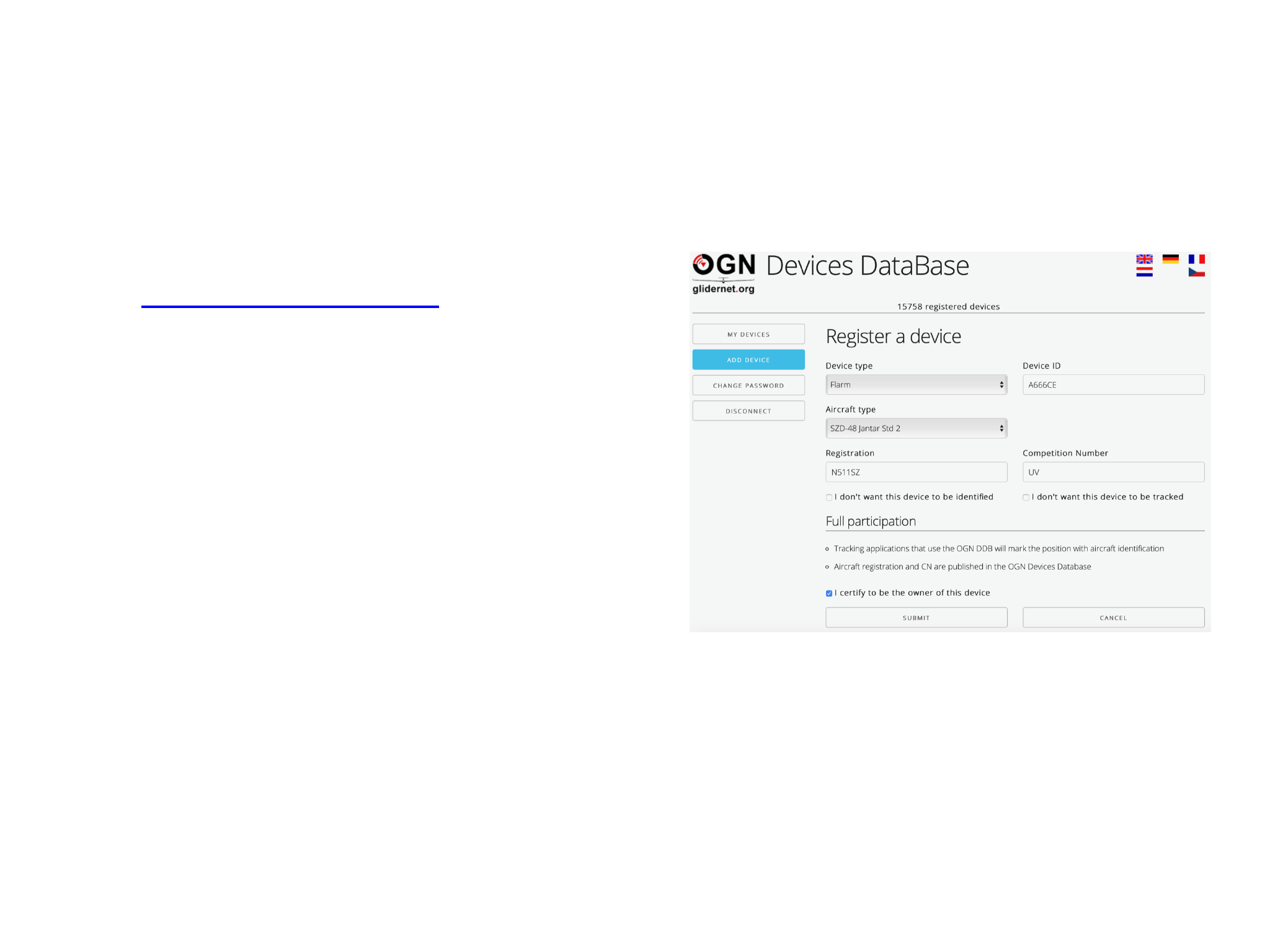

• ddb.glidernet.org

• Like flarmnet, but more

generic

• Lets us know which targets

are who

• Enter your FLARM ID (should

be the same as your assigned

mode S ID) and

registration/competition

number

Let Glideport (SSA Tracker)

Track Your FLARM

1. Generate an IMEI number at https://dyrk.org/tools/imei/

2. Provide the IMEI and your FLARM ID via the signup

sheet

3. Go to glideport.aero, settings->tracking->add device

1. Enter ir_push:<IMEI> where <IMEI> should be

replaced with the one you generated. E.g.

ir_push:1234

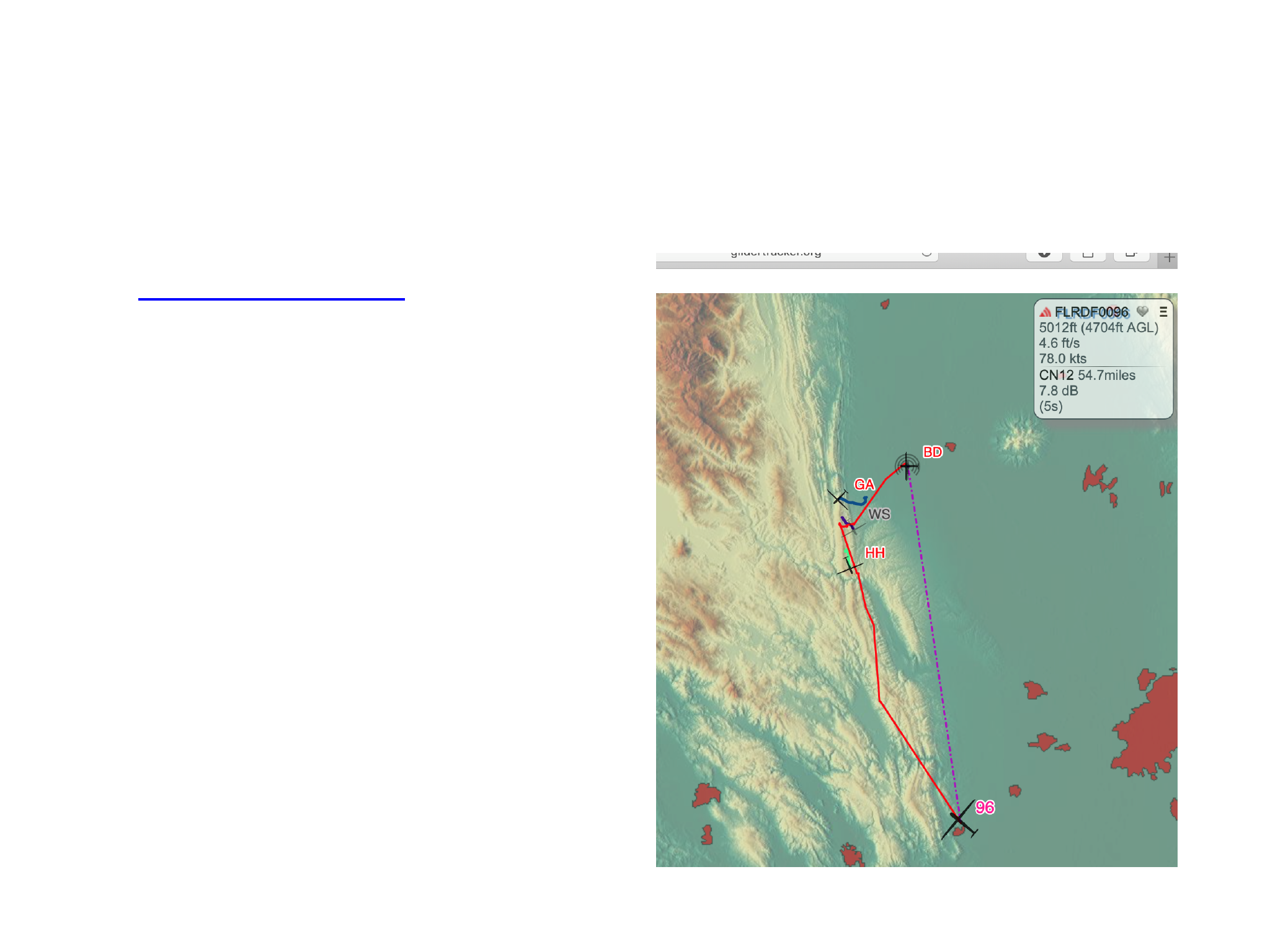

Watch via Glidertracker

• glidertracker.org

• Live only! (and last 24 hrs)

• Shows everyone with a FLARM

• Settings in top-left corner

• Map: MapsFF

• Select/Track: 24h

• Units: Imperial

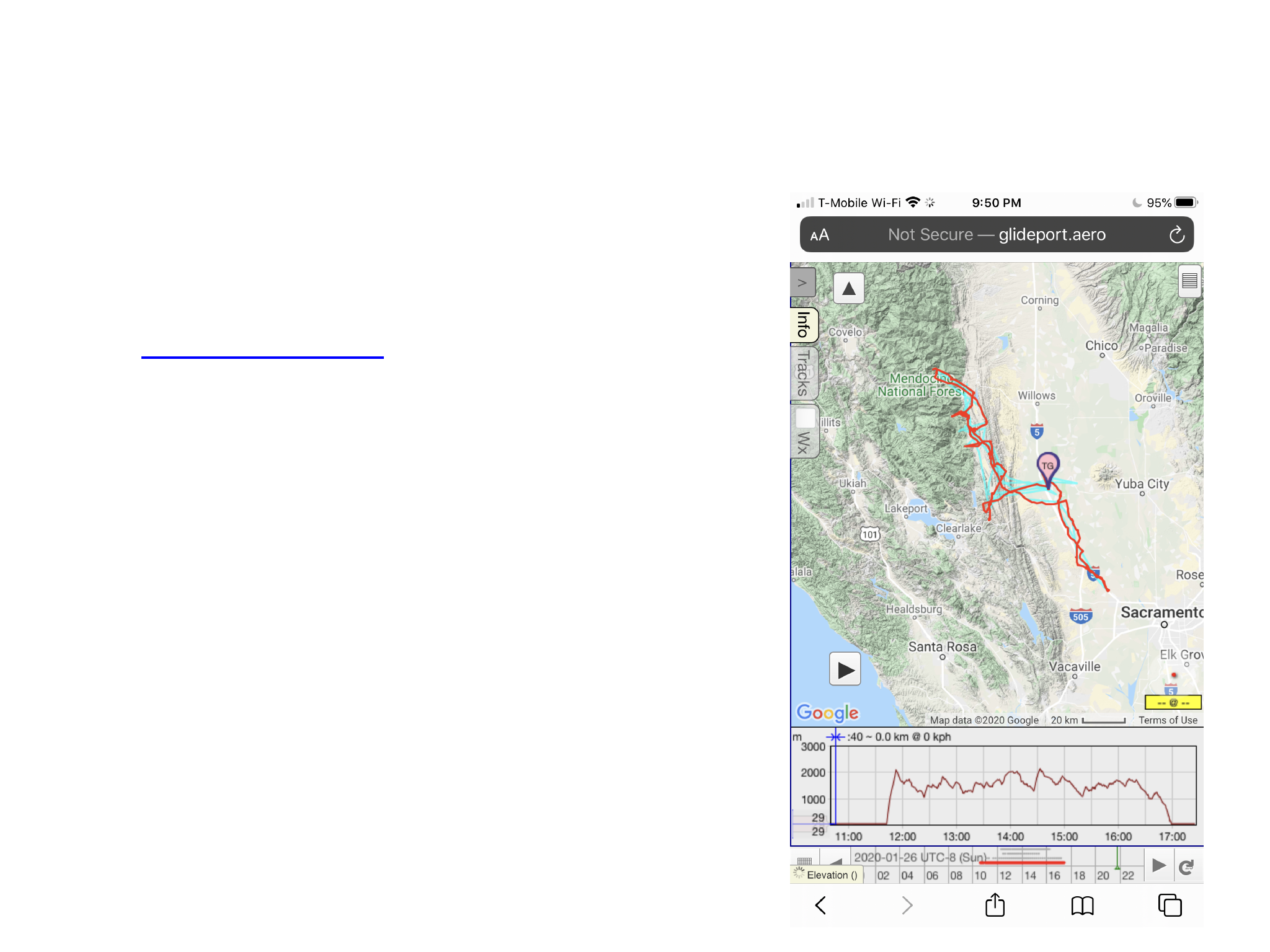

Watch via SSA Tracker

• glideport.aero

• Shows everyone who registered

with the signup sheet

• Tracks are both live and kept

indefinitely

• If a person flies with a satellite

tracker, there will be 2 tracks shown

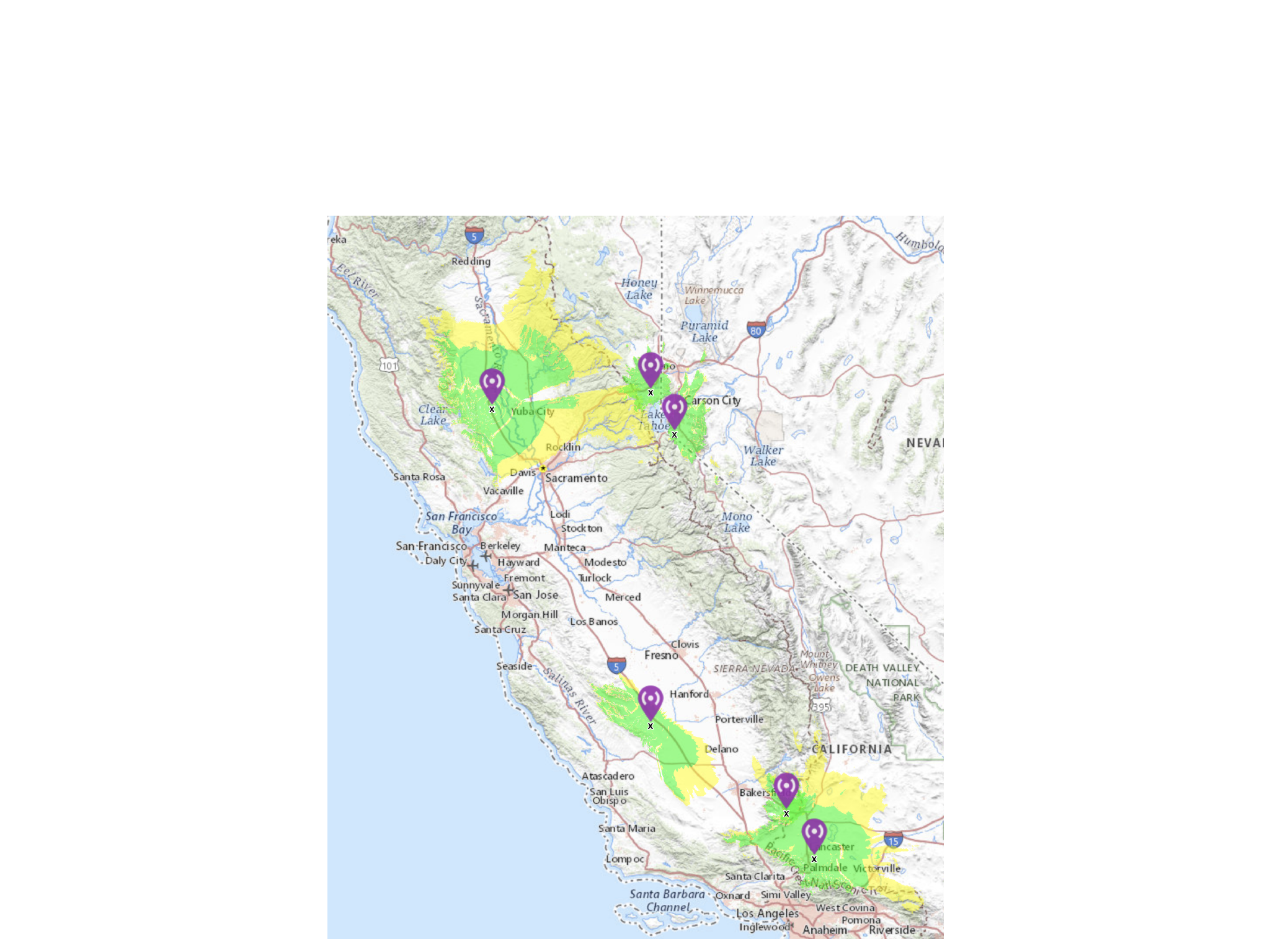

Current Coverage (Jan 2020)

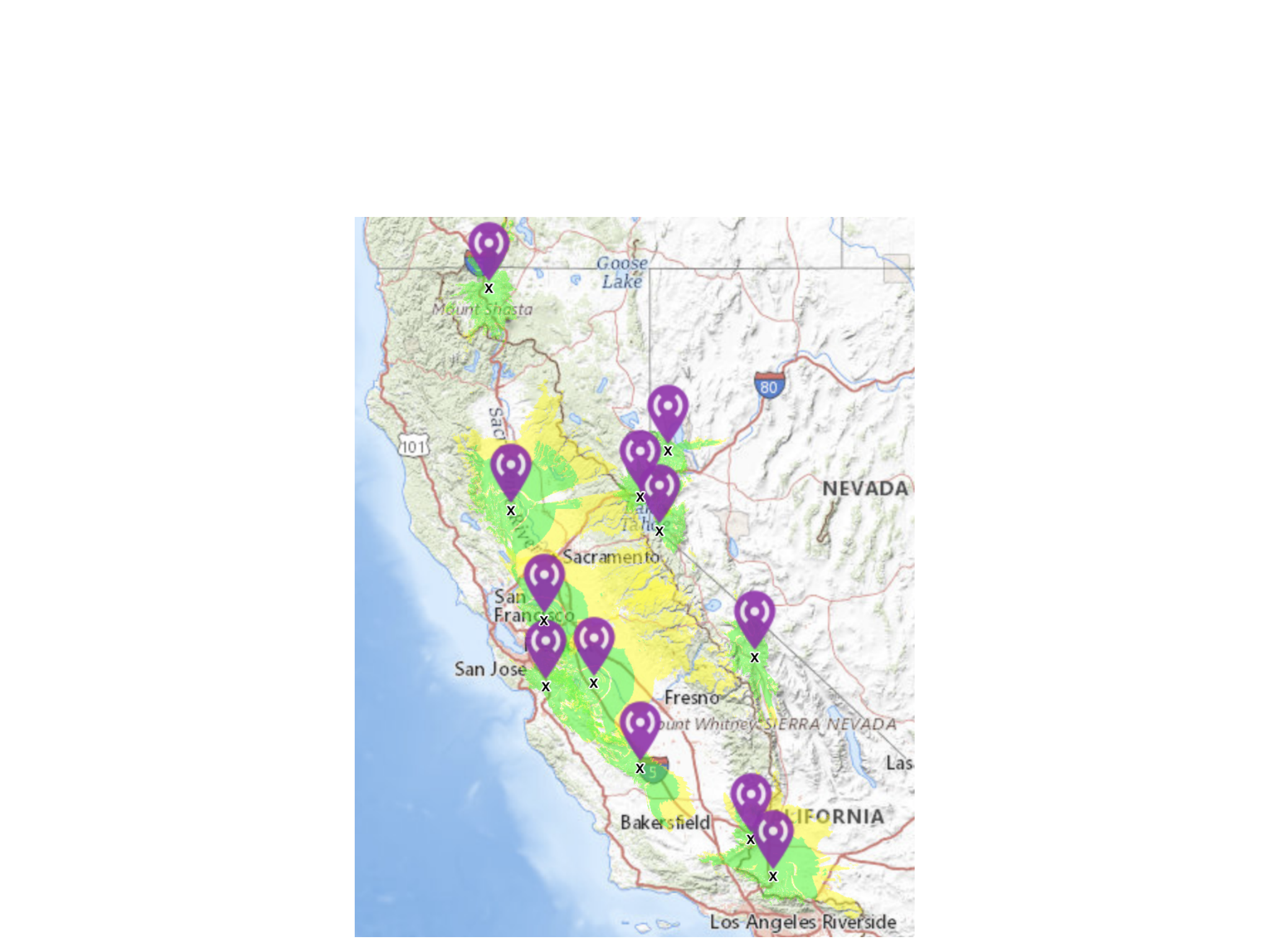

Future Coverage (Summer

2020)
